my cannons
If you have any questions than e-mail me. always use the cleaner then purple primer then the gule.
|
|
|

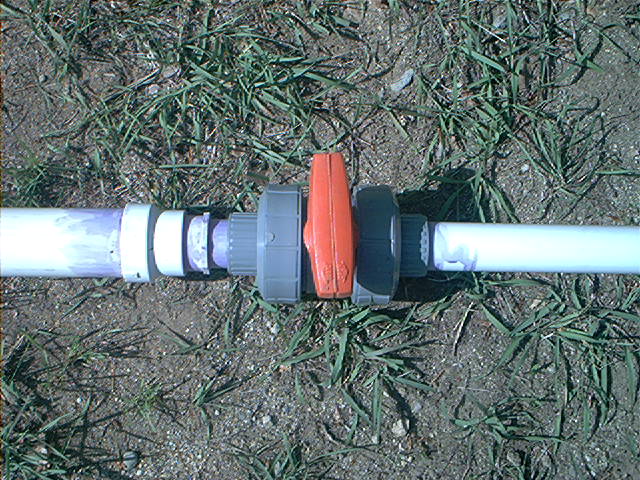

at the left 4"
parts list:
10' of 4" pvc
4" pvc cap
2" ball valve nonthreded
2" to 4" reducer x2
1' of 2"
4" connector
tire valve
pvc pipe cleaner
purple primer
pvc glue
instructions
first cut all of the pipe, my barrel is 3 1/2'long, my chamber is 6 1/2'long. cut 4"s off the 2" pvc twice. clean the pipe with the cleaner then put the purple primer on the pipe. then make a hole in the pipe so that the tire valve fits through.then glue all the pices togeather.the pvc cap goes on the longest end.
|

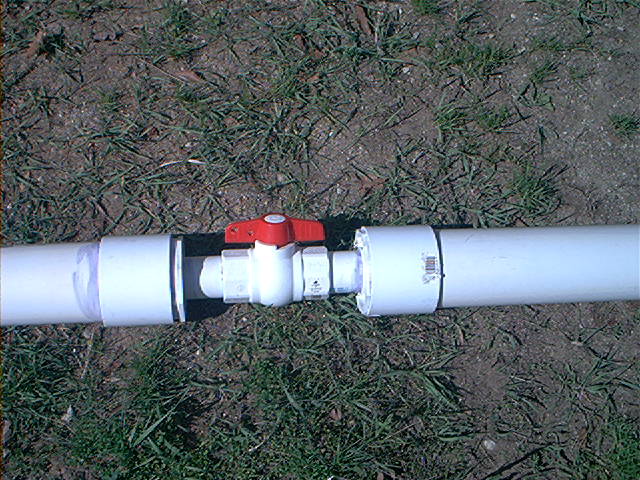

at the right 3"
parts list
10' of 3" pvc
3" to 2" bell reducer x2
2" ball valve nonthreded
1' of 2" pvc pipe
3" pvc cap
tire valve
pvc cleaner
purple primer
pvc glue
instructions
first cut 7' off the 3" pipe and the rest which is 3' which is you barrel, then cut the 2" pipe into 5" sections you will only need two of them. then clean all the parts with the pvc cleaner, then the purple primer, the you will need to put a hole in the pvc cap big enough so the tire valve will fit through but so it is tight in there. then glue all the pices to geatherthe picture at the left shoud help you some. the pvc cap goes on the longest end.
|
|
|
|

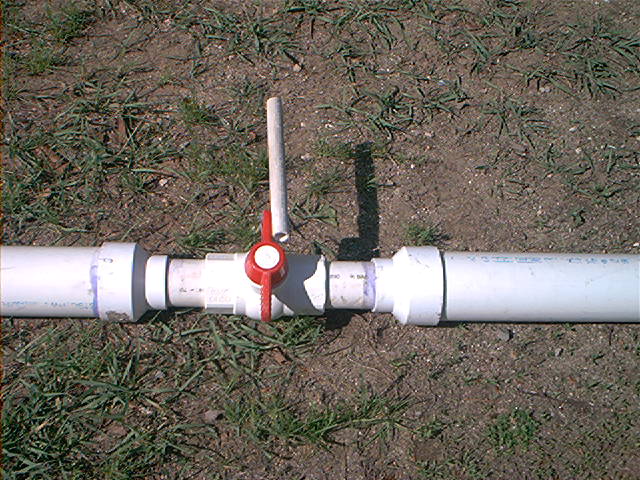

at the left 2"
parts list
1' of 2" pvc
2" ball valve nonthreded
2" pvc cap
tire valve
pvc cleaner
purple primer
pvc gule
instructions
first cut 7 1/2' off the 2" pipe the rest is the barrel. then clean all the pices with the pvc cleaner, then the purple primer, the drill a hole in the cap big enough so the tire valve will fit through but so it is tight in there. then glue all the pices to geather the pvc cap goes on the longest end.
|

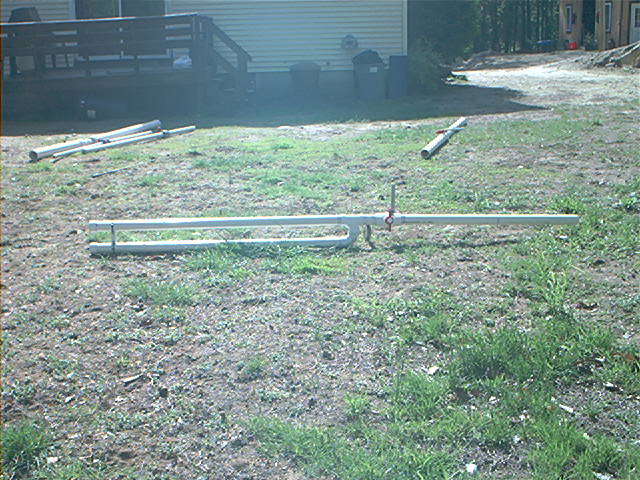

at the right 2" Y cannon
parts list
10' of 2" pvc
5' of 2" pvc
2" ball valve nonthreded
2" pvc cap x2
2" street elow male
2" Y
tire valve
pvc cleaner
purple primer
pvc gule
instructions
first cut the 10' section in half the 5' of the 2" is the barrel. then clean all the pices with the pvc cleaner, then the purple primer, the drill a hole in the cap big enough so the tire valve will fit through but so it is tight in there. the pvc cap goes on the longest end. then glue the pices to geather. I hope the picture helps. If you still need help then e-mail me.
|
|
|
|

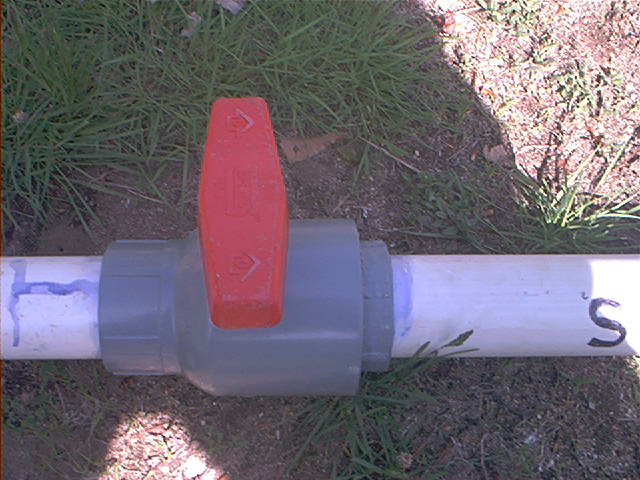

at the left 2" to 1 1/4"
parts list
5' of 2" pvc pipe
4' of 1 1/4" pvc pipe
2" to 1 1/2" CONCENTRIC REDUCER COUPLING
1 1/2"to 1 1/4" reducer bushing
1 1/4" nonthreded ball valve
2" pvc cap
tire valve
pvc cleaner
purple primer
pvc glue
instructions
clean all the peices with the pvc cleaner, then the purple primerthen drill the hole in the cap so the tire vale fits in there snug. then cut off 4"s off the 1 1/4" pvc pipethat goes between the reducer bushing and the ball valve then glue all the pices to geather and you done.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
